Surly says.... If you only have room for one bike in your life, the Straggler can (and should) be your one and only.

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialled-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego.

It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends – the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready for you to plough through challenges, not obstacles.

Straggler’s capabilities extend into some light cargo setups, so you can do double-duty when hitting the trails and running around town. Tack on a rack and maybe a frame bag when you need to grab some groceries on the way back to civilisation – knowing with Straggler, you always have an exit plan.

Highlights
650b or 700c wheels (varies by frame size) for optimised rider fit
Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames

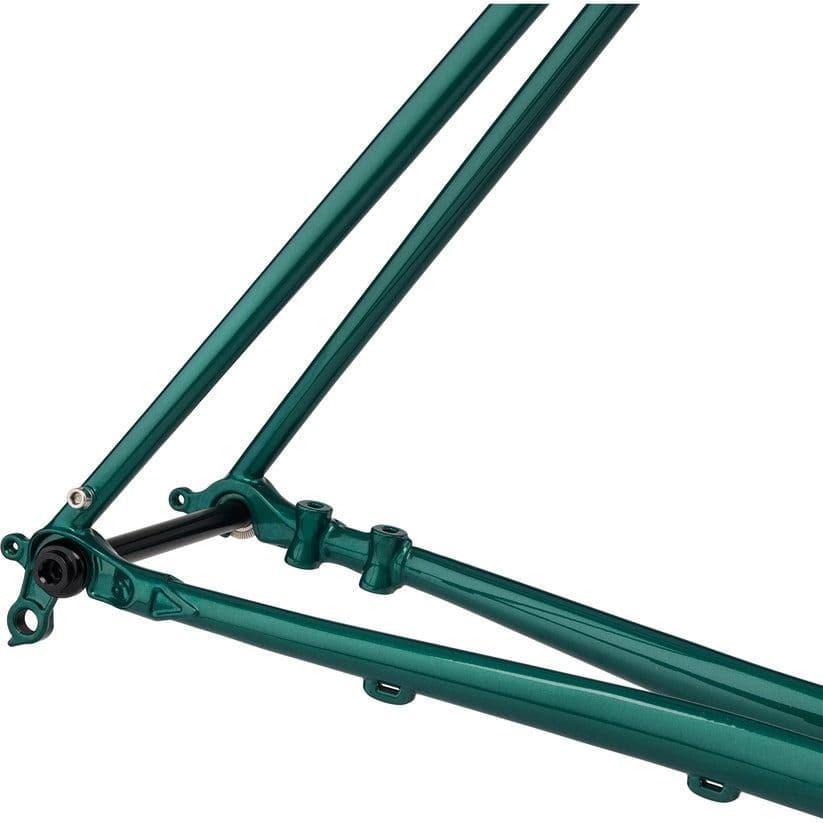

Updated thru-axle dropouts for improved stiffness and handling
Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube

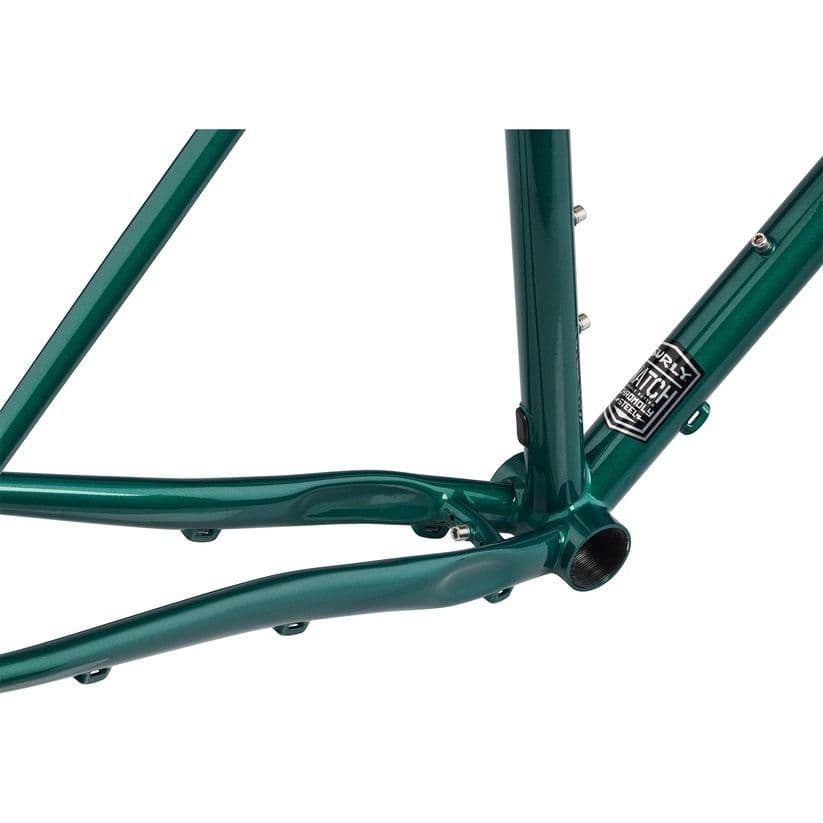

Lower bottom bracket and sloping top tube add stability and better standover
50mm tyre clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain

Frame Specification

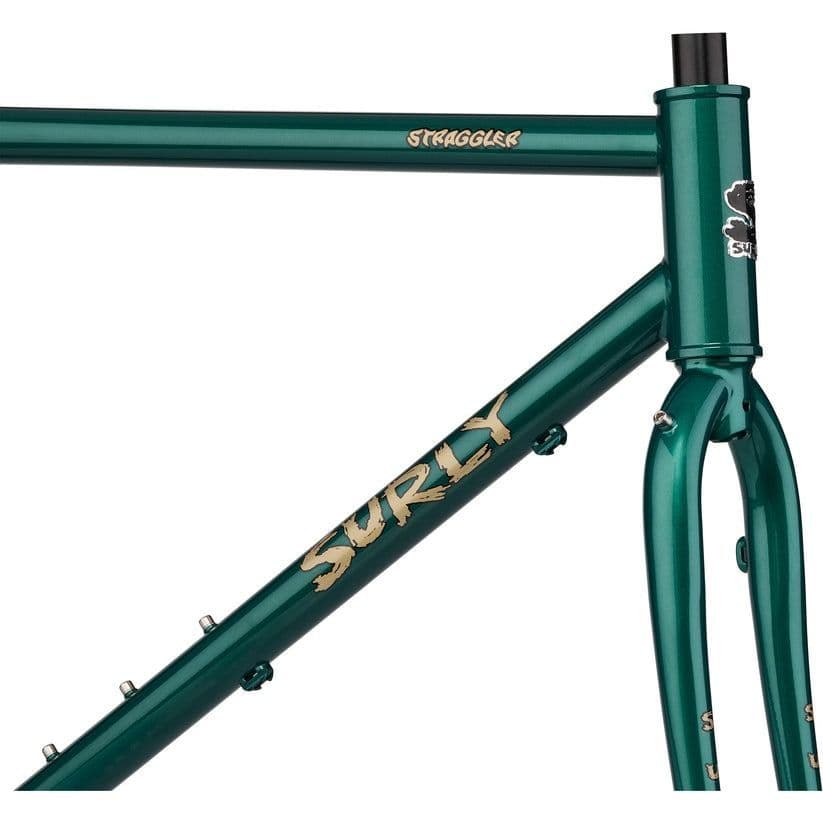

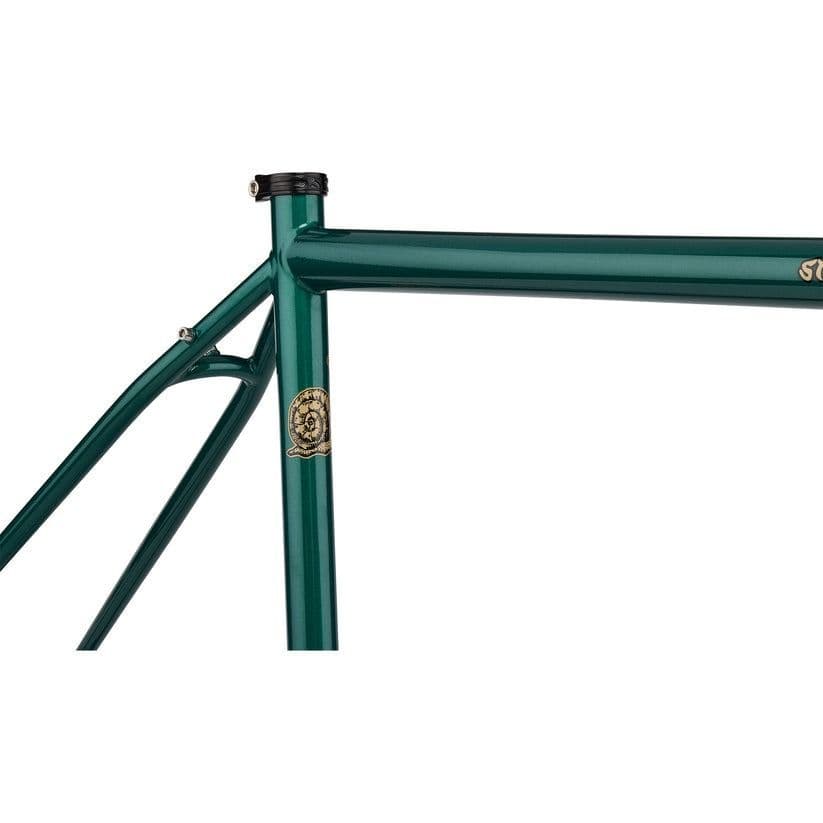

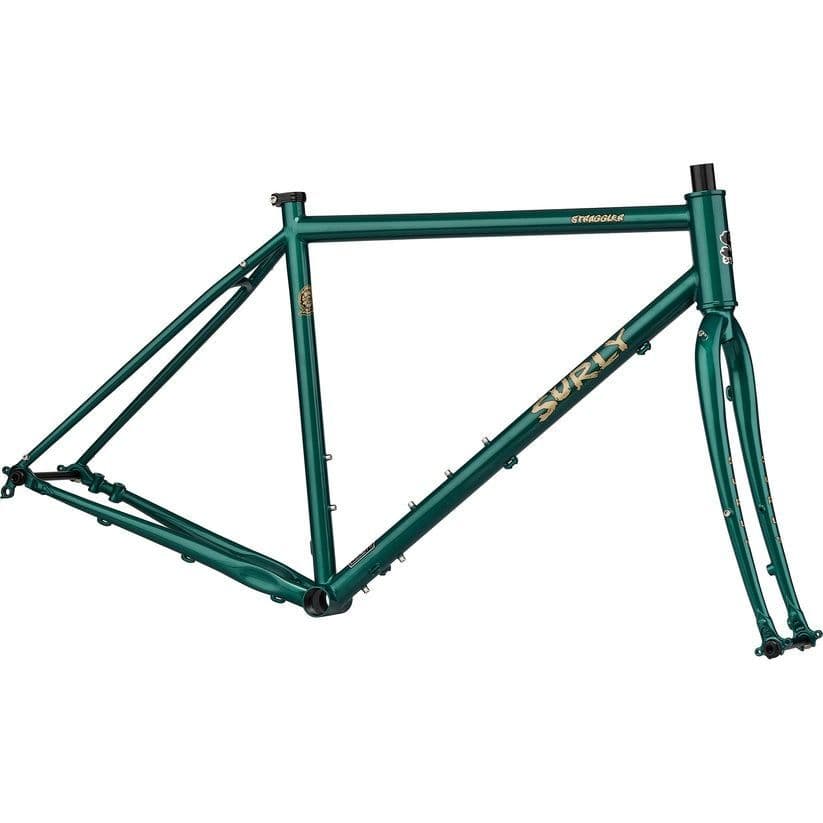

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction: 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated
Suspension Fork Length (Travel): 436mm x 51mm (40mm)
Fork Offset: 44mm
Axle to Crown:
650b (Size 46–52): 390mm
700c (Size 54–64): 410mm
Rear Spacing: 12 x 142mm (Axle included)
Front Brake (Rotor): Flat Mount Disc 140/160 (160mm max)
Headset - Upper: ZS44/28.6
Headset - Lower: EC44/30
Front Spacing: 12 x 100mm (Axle included)
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stem Clamp: Ø28.6mm (1-1/8")
Seatpost: Ø27.2mm
Seatpost Clamp: Ø30mm (Surly stainless steel clamp included)
Front Derailleur Clamp: High band clamp or braze-on with adapter bottom-pull (Ø28.6mm) 47CL
Bottom Bracket: 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring):
Single ring, 47mm chainline crankset: 46T
Double, 47mm chainline crankset: 50/34T

Design Wheel/Tyre Sizes
Size 46–52 Frame and Fork Clearance:
650b x 50mm (w/o mudguards), 650b x 47mm (w/ mudguards)

Size 54–64 Frame and Fork Clearance:
700c x 50mm (w/o mudguards), 700c x 47mm (w/ mudguards)

Alternate Wheel/Tyre Sizes
Size 46–52 Frame and Fork Clearance:
26in x 50mm (w/ mudguards)
700c x 35mm (w/o mudguards), 700c x 32mm (w/ mudguards)

Size 54–64 Frame and Fork Clearance:
650b x 50mm (w/ mudguards)

Max Tyre Outer Diameter
Frame/rear wheel
Size 46–52:
26in x 50mm (w/ mudguards)
650b x 50mm (w/o mudguards)
650b x 47mm (w/ mudguards)
700c x 35mm (w/o mudguards)
700c x 32mm (w/ mudguards)

Size 54–64:
650b x 50mm (w/ mudguards)
700c x 50mm (w/o mudguards)
700c x 47mm (w/ mudguards)

Fork/front wheel
Size 46–52:
26in x 50mm (w/ mudguards)
650b x 50mm (w/o mudguards)
650b x 47mm (w/ mudguards)
700c x 35mm (w/o mudguards)
700c x 32mm (w/ mudguards)

Size 54–64:
650b x 50mm (w/ mudguards)
700c x 50mm (w/o mudguards)
700c x 47mm (w/ mudguards)
