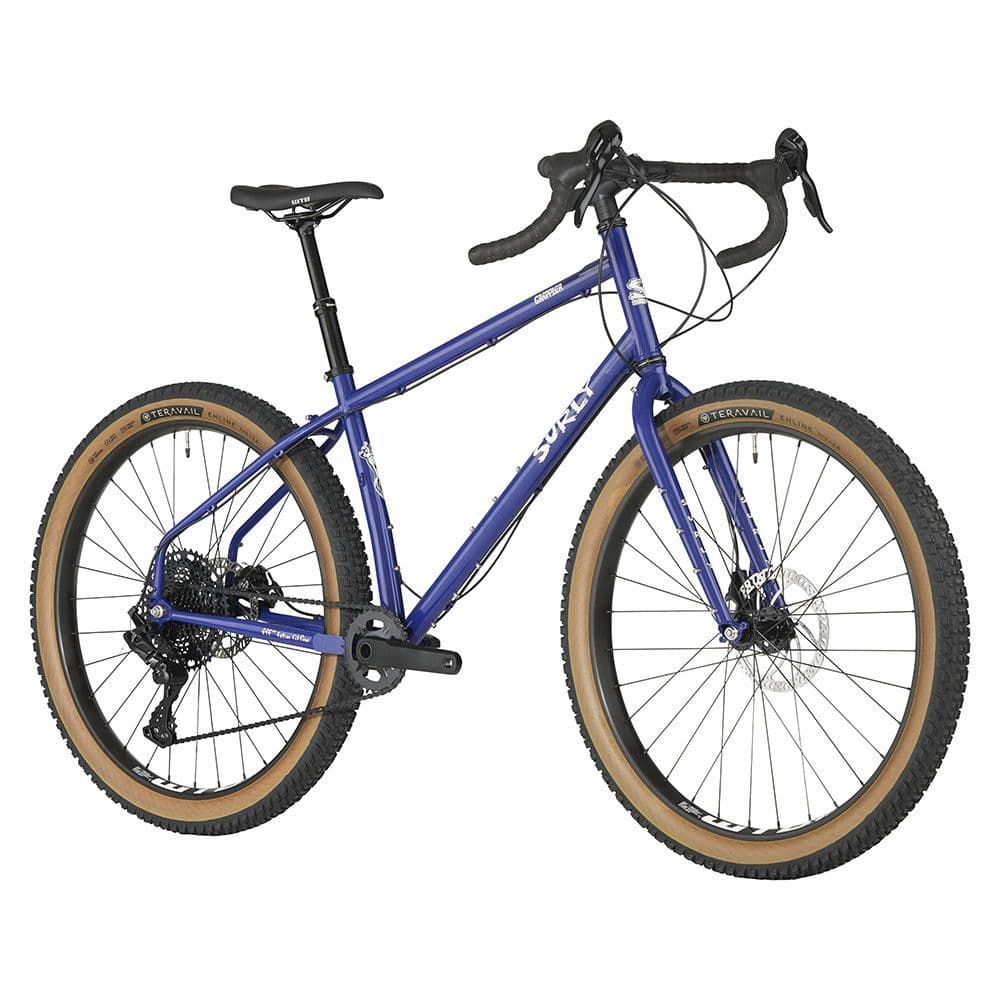

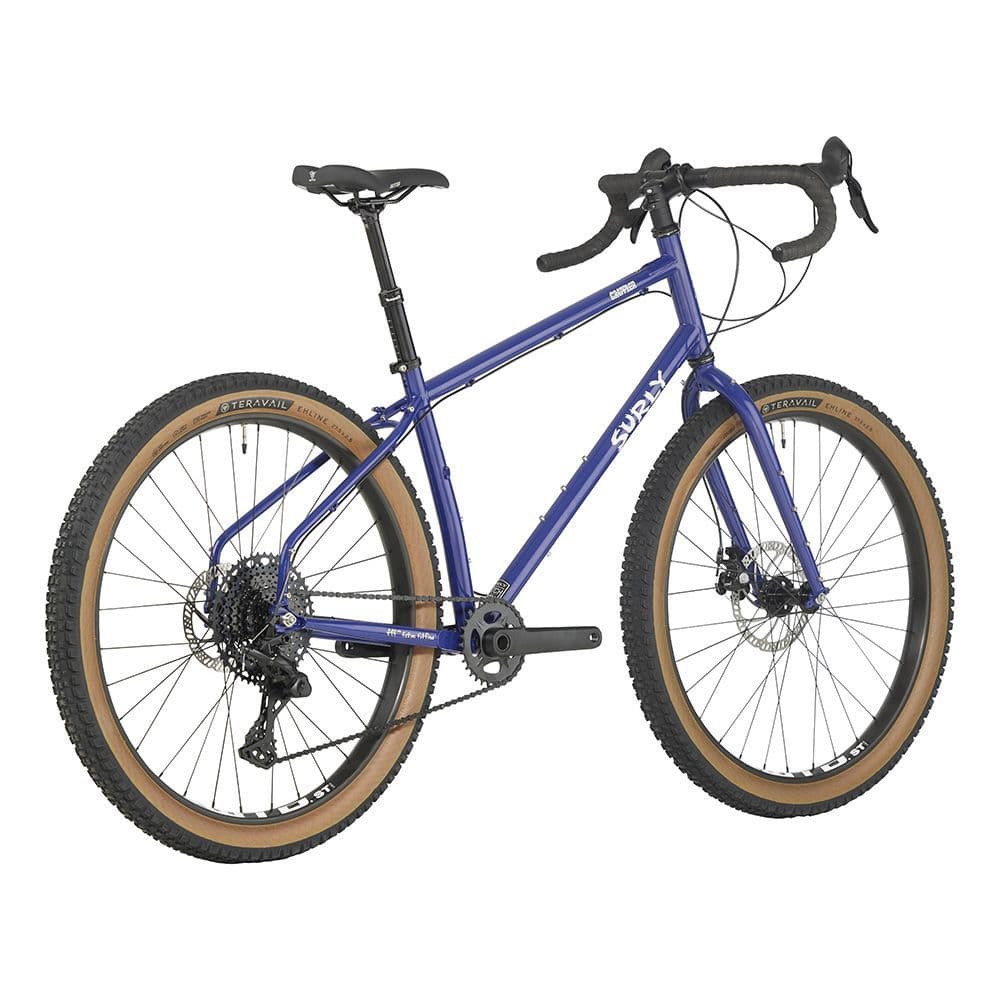

Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so Surly designed the Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tyres and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There's nothing to be afraid of. Probably.

Featuring Surly's versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
Custom dropouts ready to run single-speed or internally geared hub setups
Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
Clearance for 27.5 x 2.8" or 29 x 2.1" tyres (with or without mudguards)

Specifications:

• Frame: 100% Chromoly Steel frame
• Fork: 100% Chromoly Steel fork
• Headset: Cane Creek 40
• Handlebar: Salsa Cowchipper 31.8
• Bar Tape: Cork Black
• Saddle: WTB Volt 142
• Seatpost: TransX YSP15, 30.9, 100mm travel
• Rear Derailleur: Microshift M6205
• Gear Levers: Microshift SB-M100
• Chain: KMC X10
• Crankset: Samox 2PCS Boost 32t
• Cassette: Microshift 11-48t
• Bottom Bracket: Samox BSA 24
• Brake Levers: AdventX Dual Control Levers
• Brakes: Tektro Mira MD-C400
• Rims: WTB ST i40 TCS
• Hubs: Novatec 32h Boost
• Tyres: Teravail Ehline, 27.5 x 2.5"
