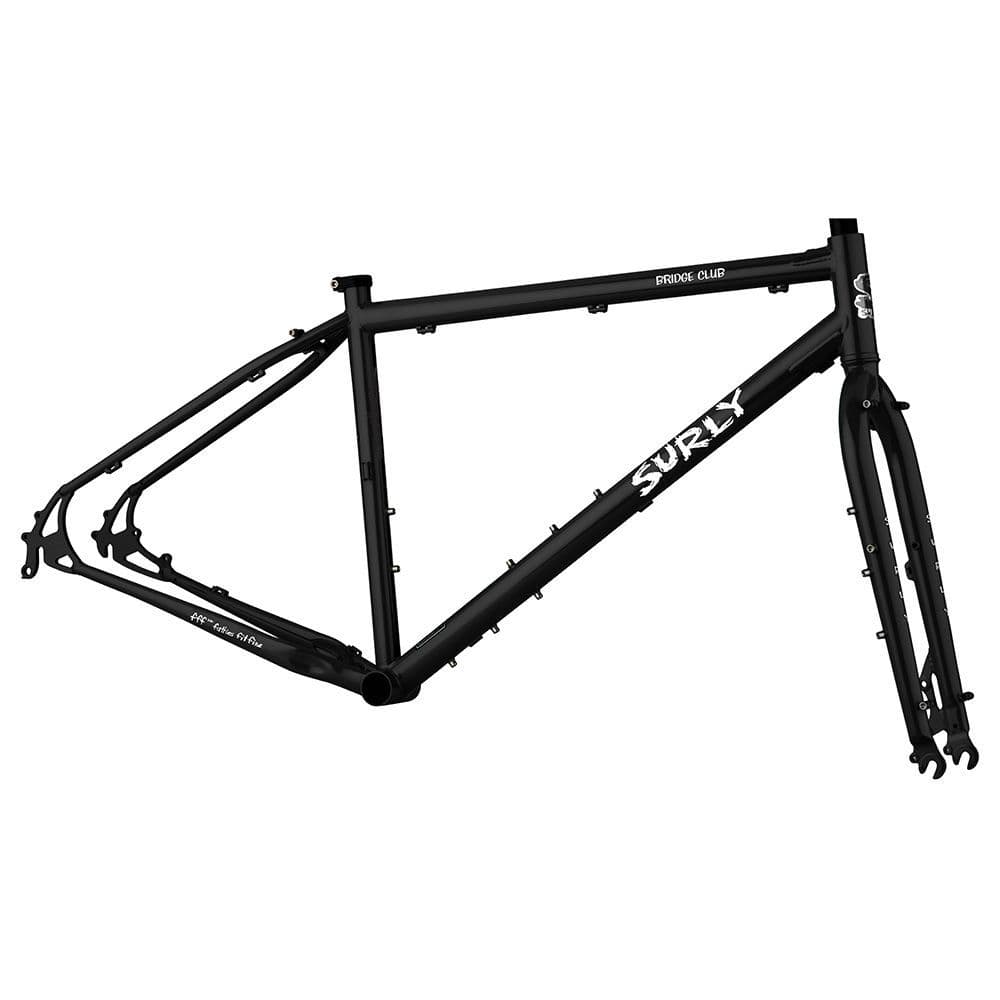

Surly says... Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

• Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
• Run racks and panniers, frame bags, or all of the above
• Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
• Clearance for 700 x 47mm tyres (with or without mudguards), 27.5" x 2.8” tyres (27.5" x 2.6” with mudguards), and 26" x 3” tyres (26" x 2.8” with mudguards)

• Brand:
  Surly
• Product Code:
  FMSUBC252K
• Weight:
  5kg

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Rear Dropout Configuration: Vertical
Rear Hub Spacing: "Gnot-Boost" 138mm
- 10 x 135mm or 10 x 141mm
Front Hub Spacing: 10 x 100mm
Rear Brake: Disc - 51mm I.S. (180mm max rotor)
Front Brake: Disc - 51mm I.S. (203mm max rotor)
Head Tube: Ø34mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.): EC34/28.6
Stock Headset Lower (S.H.I.S.): EC34/30
Seat Collar: Ø30mm
Seatpost: Ø27.2mm
Front Derailleur (Clamp): High direct mount top-pull (Ø28.6mm)
- 26mm offset adapter (not included) for 135mm rear hub spacing
- 29mm offset adapter (not included) for 141mm rear hub spacing
Max Chainring:
- 1x (Mtn)34T
- 2x (Mtn)26/40T
- 3x (Mtn)22/36/44T
- 1x (Boost): 40T
- 2x (Boost): 32/42T
Bottom Bracket: 73mm threaded (1.37" x 24TPI)
Tire Clearance Frame:
- 26" x 3.0" (26" x 2.8" with fenders)
- 27.5" x 2.8" (27.5" x 2.6" with fenders)
- 700c x 47mm with or without fenders
Tire Clearance Fork:
- 26" x 3.0" (26" x 2.8" with fenders)
- 27.5" x 2.8" (27.5" x 2.6" with fenders)
- 700c x 47 with or without fenders
Rigid Fork Spec: 420mm x 43mm
Bottle Mounts Frame:
- 2 Three-Pack (XS)
- 1 Standard + 2 Three-Pack (S - XL)
Bottle Mounts Fork: 2 Three-Pack
Rack Mounts Frame: Yes (upper and lower threaded)
Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame: Yes
Fender Mounts Fork: Yes

SIZE	XS	SM	MD	LG	XL
Reach	376	397	419	434.5	444
Stack	553	567	576	590	609
Head Tube Angle	70.0°	71.0°	71.0°	71.0°	71.0°
Head Tube Length	110	120	130	145	165
Seat Tube Length	335.6	406.4	457.2	508	558.8
BB Drop	60	60	60	60	60
Wheelbase	1032	1047.5	1073	1093	1109
Chainstay Length	435	435	435	435	435
Top Tube Length, Actual	534	547.5	570	591.5	610.3
Top Tube Length, Effective	545	570	595	615	630
Seat Tube Angle	73.0°	73.0°	73.0°	73.0°	73.0°
Standover Height	709	750.5	780	812	845.5
Stem Length	80	80	90	90	100
Stem Angle	6°	6°	6°	6°	6°
Crank Length	170	170	175	175	175
Fork Length	420	420	420	420	420
Fork Rake	43	43	43	43	43
