Adapter thru axle with integrated M6 threads for versatile mounting options.

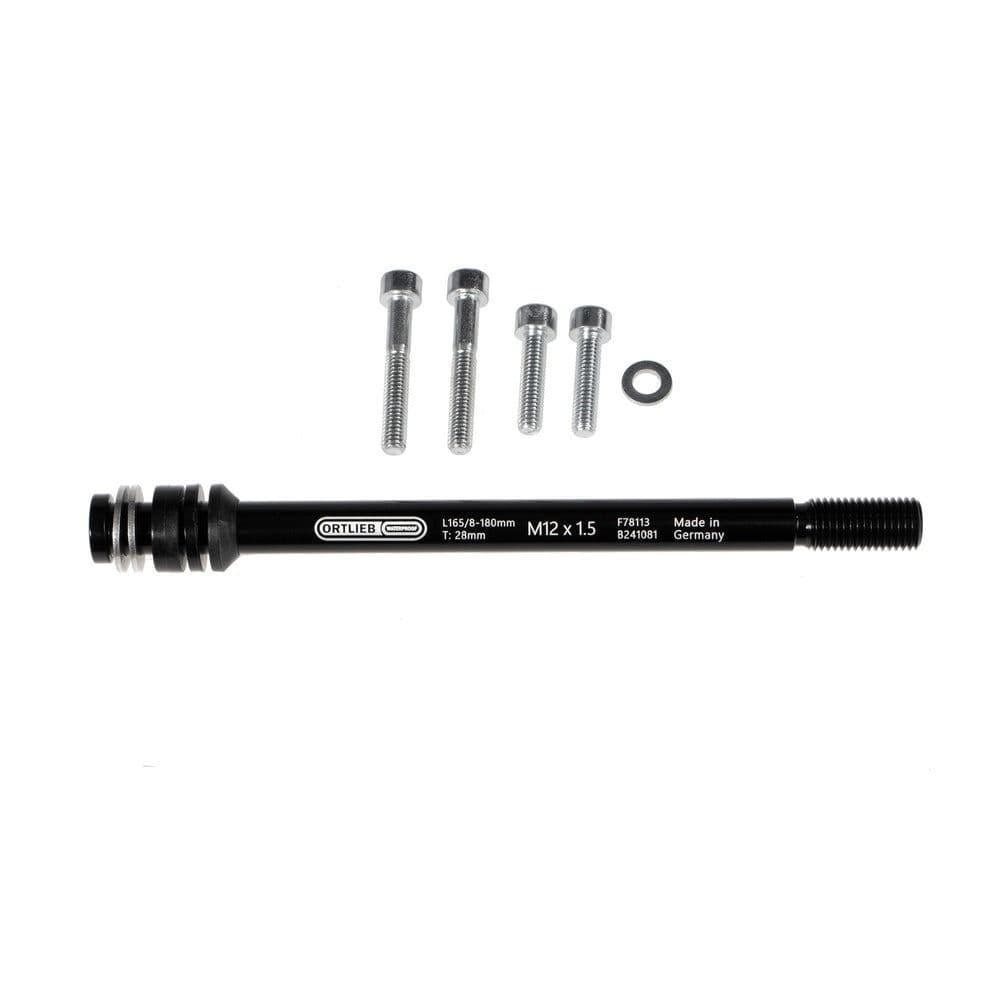

The Thru Axle M6-Connector is a universal adapter thru axle designed for the secure mounting of racks. Crafted from high-quality aluminum with integrated M6 threads, it offers exceptional versatility and durability.
This adapter thru axle replaces axles up to 180 mm in length and can be adjusted to fit axle lengths between 165 mm (tapered) and 168 mm to 180 mm using the included spacers. It is also compatible with shorter axle lengths, provided the axle can be screwed through the frame.

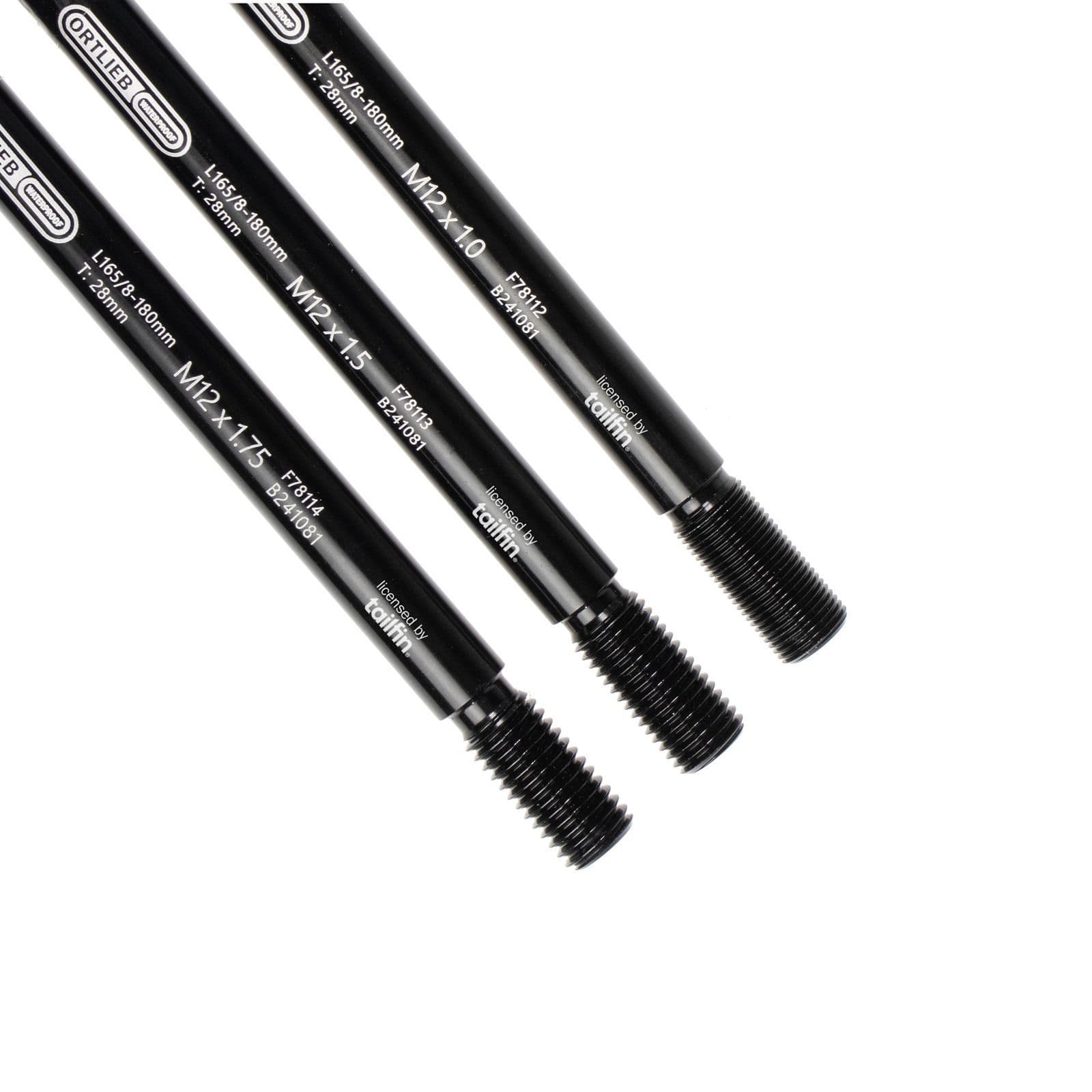

Available in three thread pitches and fully compatible with SRAM UDH/Transmission, this thru axle is the ideal solution for demanding applications, ensuring a secure and reliable fit.

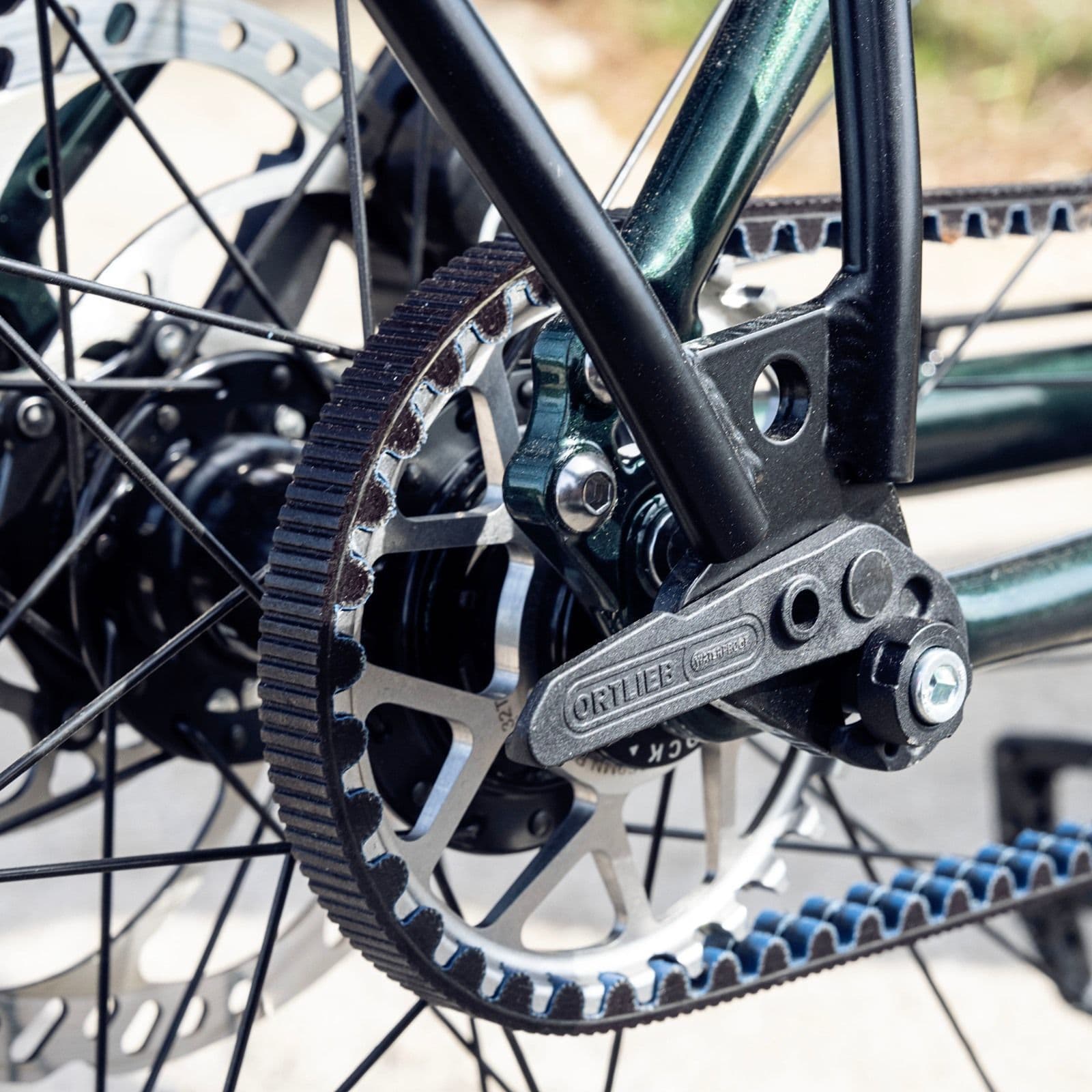

Licensed by Tailfin® for the use of a THRU AXLE M6-CONNECTOR with a QUICK-RACK L or XL
in the US and the UK (Patent No.GB 2 542 644 and US 10,654,540)

Specification:

• Width: 18 cm
• Weight: 54 g

Warnings:

• Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 10 km, 50 km, 100 km and 200 km and retighten if necessary.
• Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 26 kg in total. If necessary, weigh your load to ensure that you do not exceed the maximum payload.
