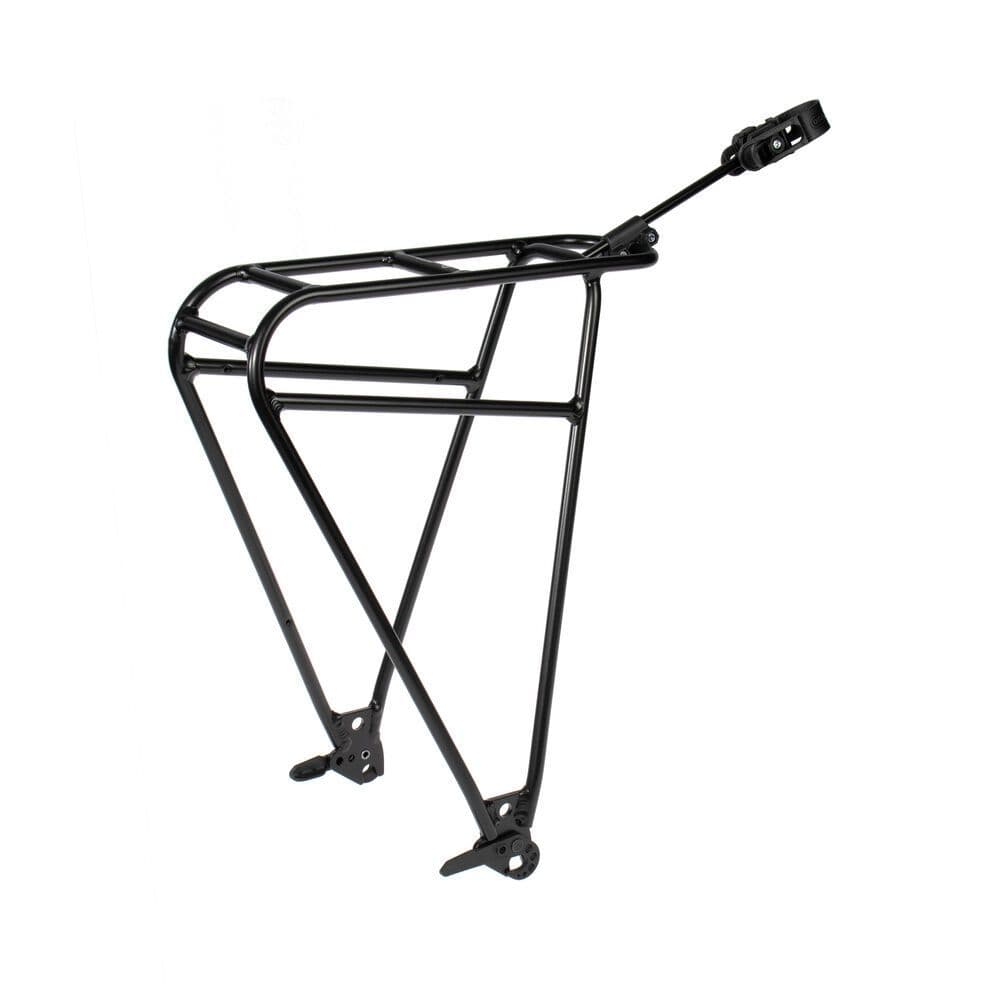

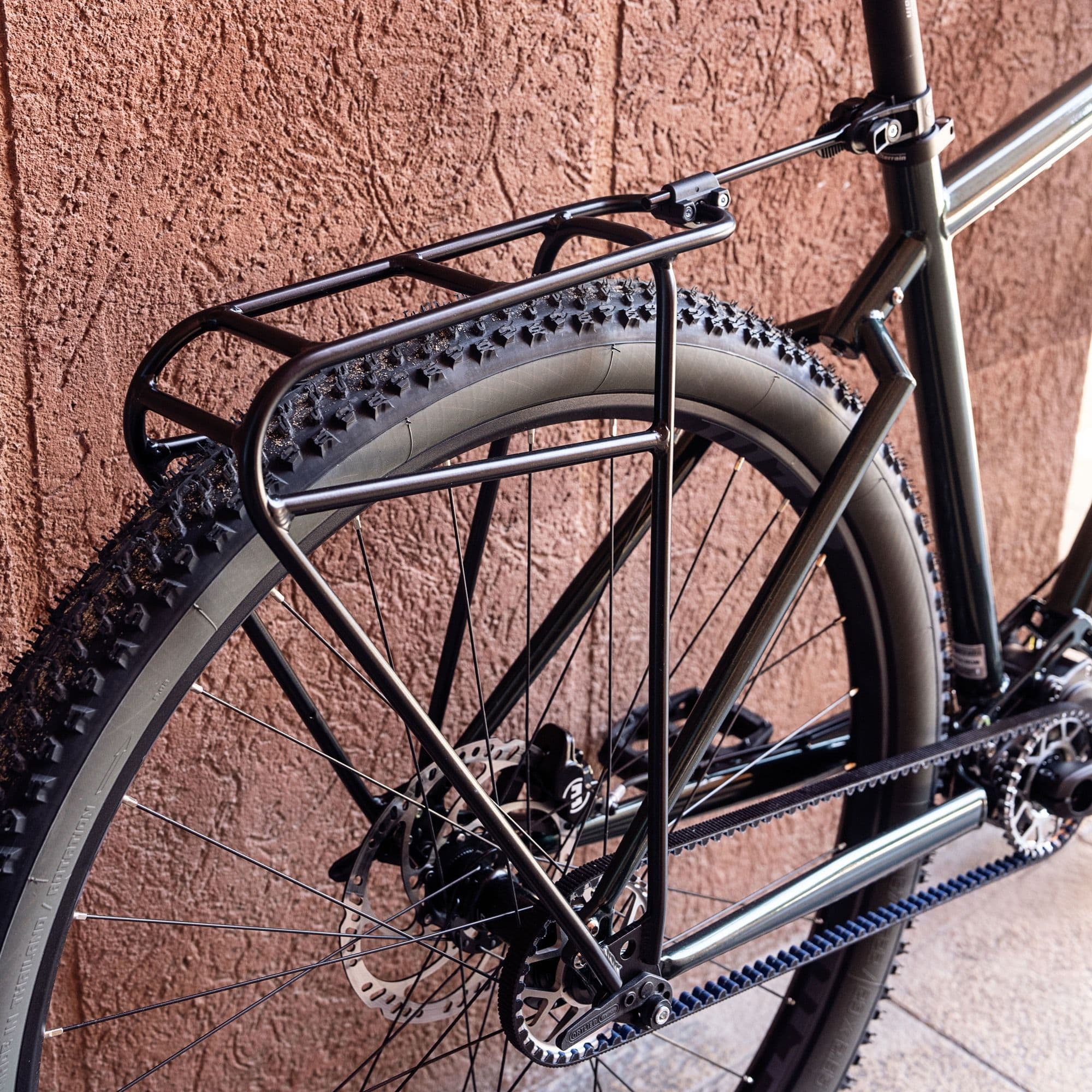

From road, gravel or mountain bike to commuter bike in only 15 seconds – with the innovative Quick-Rack, you transform your sporty bike into an all-rounder for everyday use.

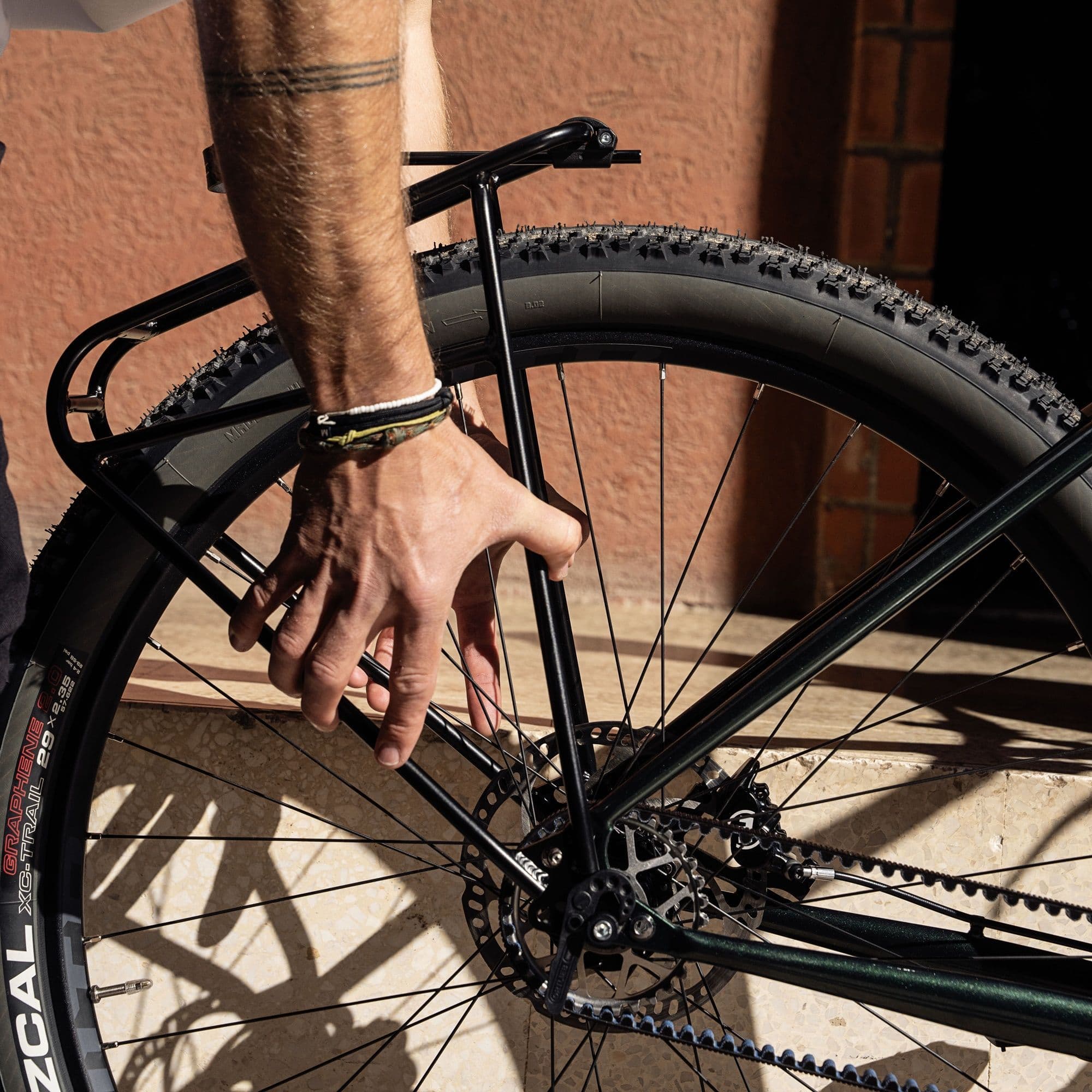

Transform your bike in no time at all from a lightweight bike for sporty tours into a transport bike for shopping and commuting – this way you stay completely flexible. Fifteen seconds is all it takes to mount the practical luggage rack and only five seconds to remove it again. The struts with a diameter of 10 mm support a payload of up to 20 kilograms. The Quick-Rack is of course suitable for use with all of our fixation systems so that you can combine it with any ORTLIEB bag. Thanks to the two hanging levels and a platform, you can also use and fasten panniers and a basket at the same time. The optional mudguards make sure that you keep dry and clean in bad weather too.

Specifications:

• Height: 41 cm
• Width: 20 cm
• Depth: 41 cm
• Load: 20 kg
• Weight: 605 g
• Tyre clearance direct mount & Seat Stay Adapter: 29" x 3"
• Tyre clearance Thru Axle M6-Connector: 28" x 50 mm
• Recommended mounting: Thru Axle M6-Connector*
• Maximum load: 20kg
• Weight: 605g
• Ideal for: Trekking, touring, gravel bikes

Maximum flexibility:
Thanks to its versatile mounting options, the Quick-Rack can be mounted in a variety of ways to fit almost any bike.

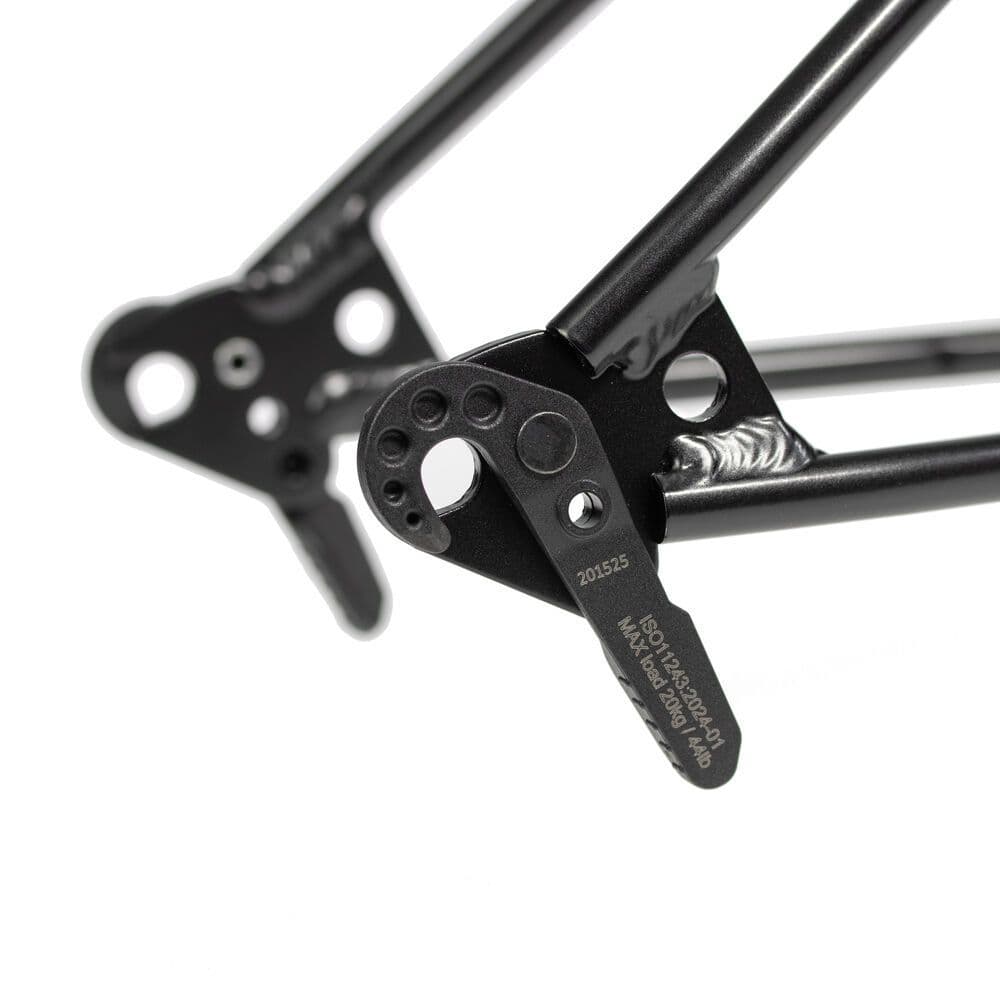

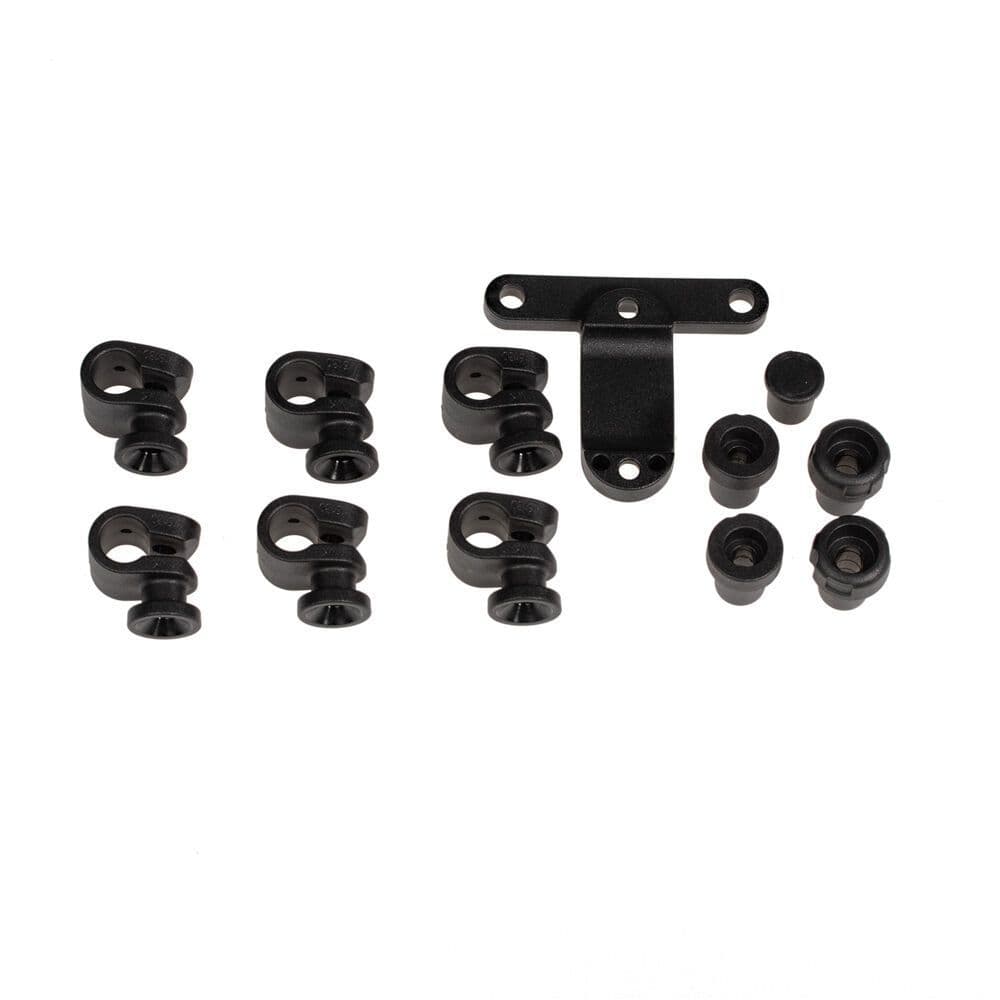

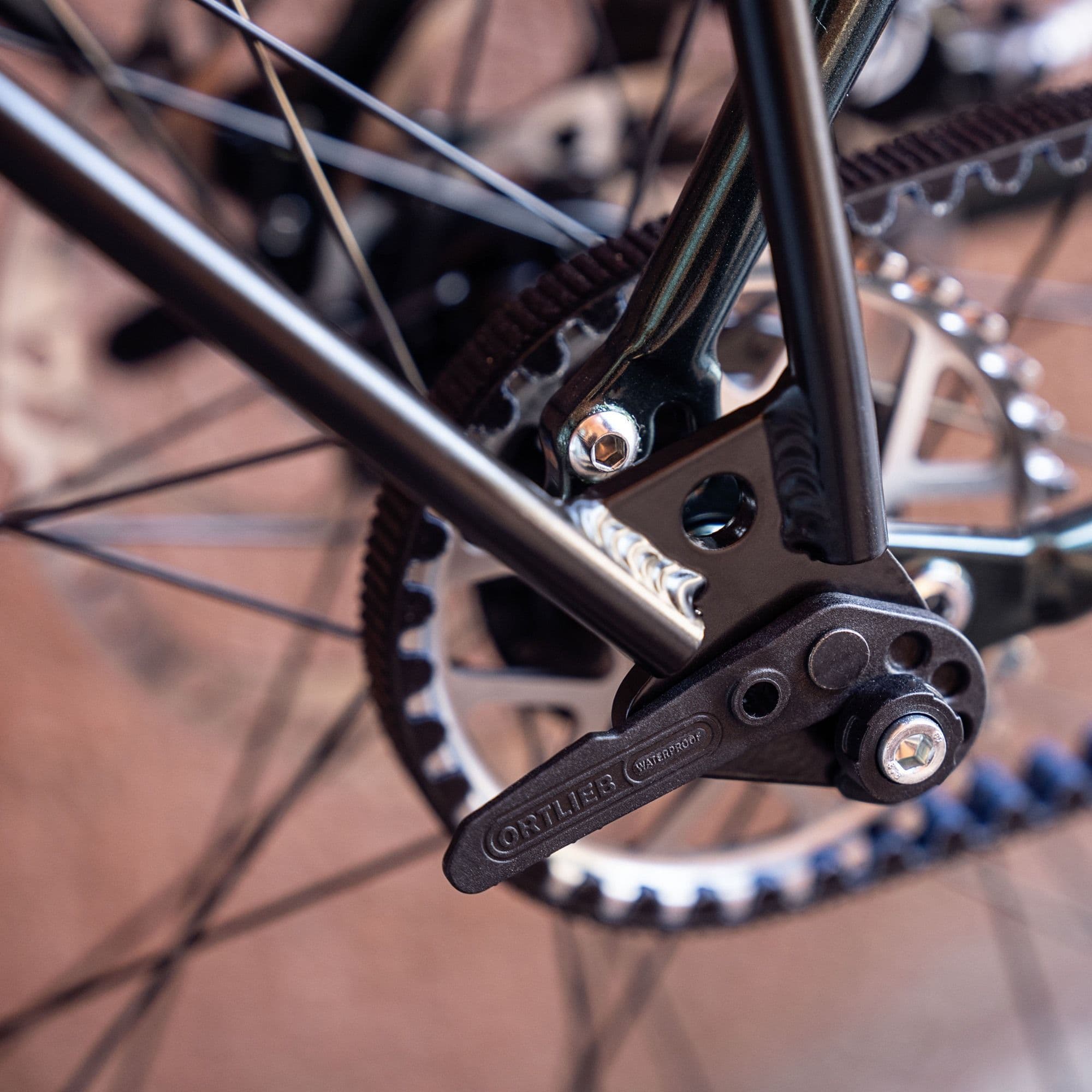

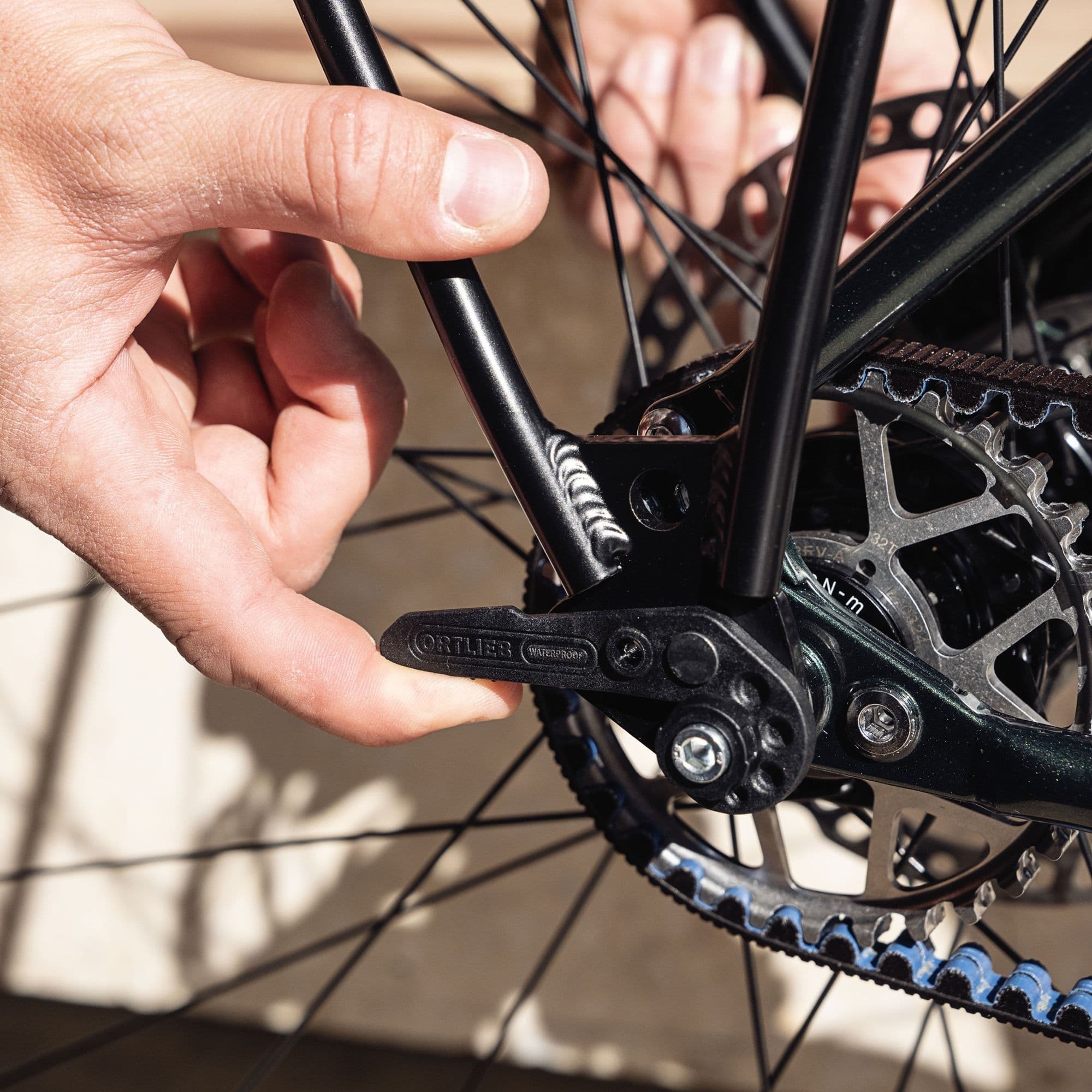

• Direct mounting on the frame (M5/M6): Does your bike have M5 or M6 threaded eyelets? Then mount the Quick-Rack directly on the frame with the supplied snap-in knobs.
• Thru Axle M6-Connector: If your bike has a thru axle, you can replace it with the optional Thru Axle M6 connector and attach the Quick-Rack directly to the axle.
• Quick Rack Seat Stay Adapter: Use the optional Seat Stay Adapter to mount the Quick-Rack on your bike in case you don't have threaded eyelets for pannier racks or a thru axle.

*Licensed by Tailfin® for the use of a THRU AXLE M6-CONNECTOR with a
QUICK-RACK L or XL in the US and the UK (Patent No.GB 2 542 644 and US 10,654,540)
